See how much electricity your site uses, and when.

How much power does the site draw at night? When do the peaks come, and what does the PV system feed in? You read the answers directly on the platform, in the load profile, the heatmap and the raw values, for consumption and feed-in alike.

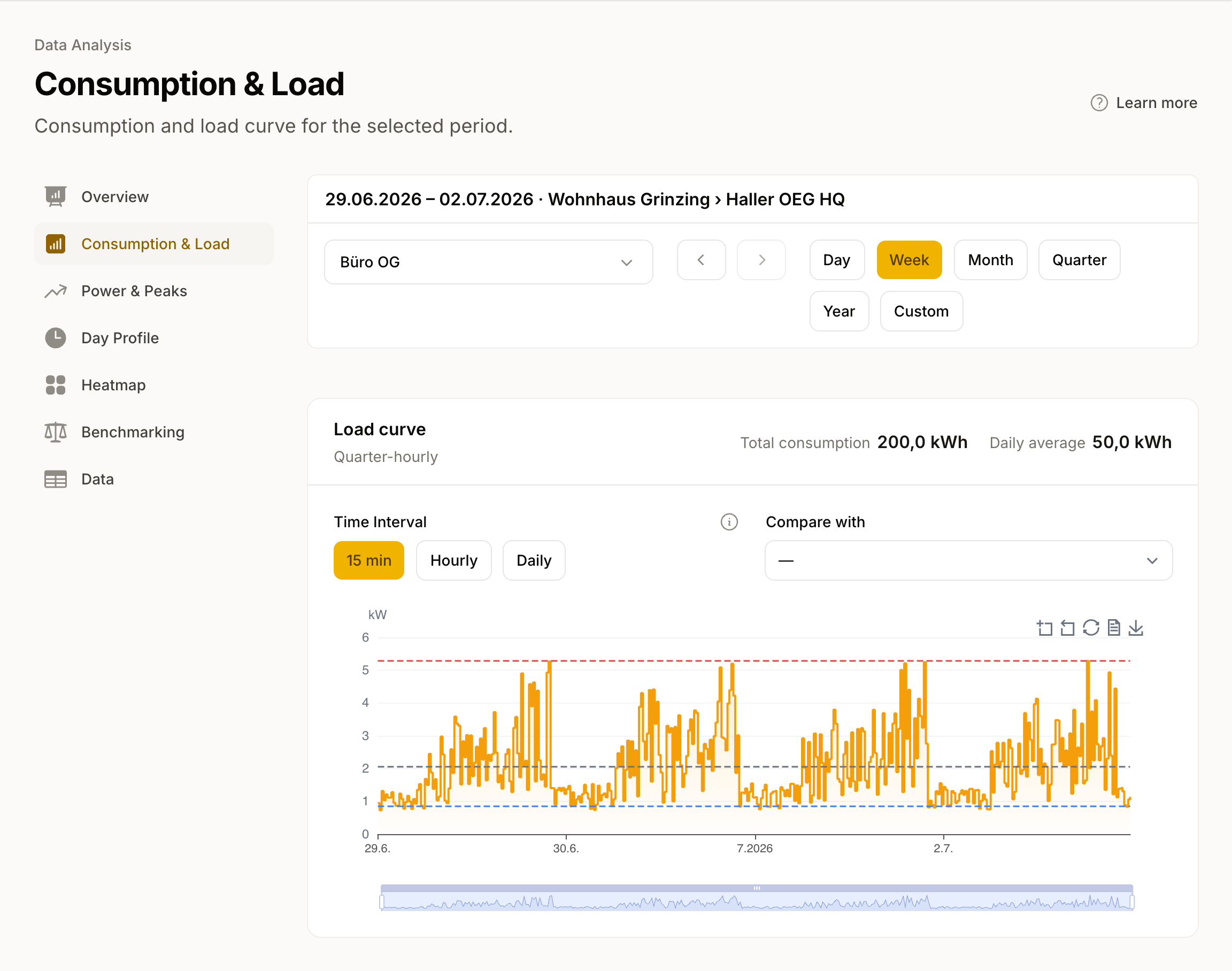

Consumption: chart of a meter with markers for base load, average and peak load.

Every view answers a question

Spot base load and peaks

The load duration curve on the Power page shows how high the base load is and how many hours the site runs close to its peak. The highest quarter-hours sit next to it in a table, with timestamp and value.

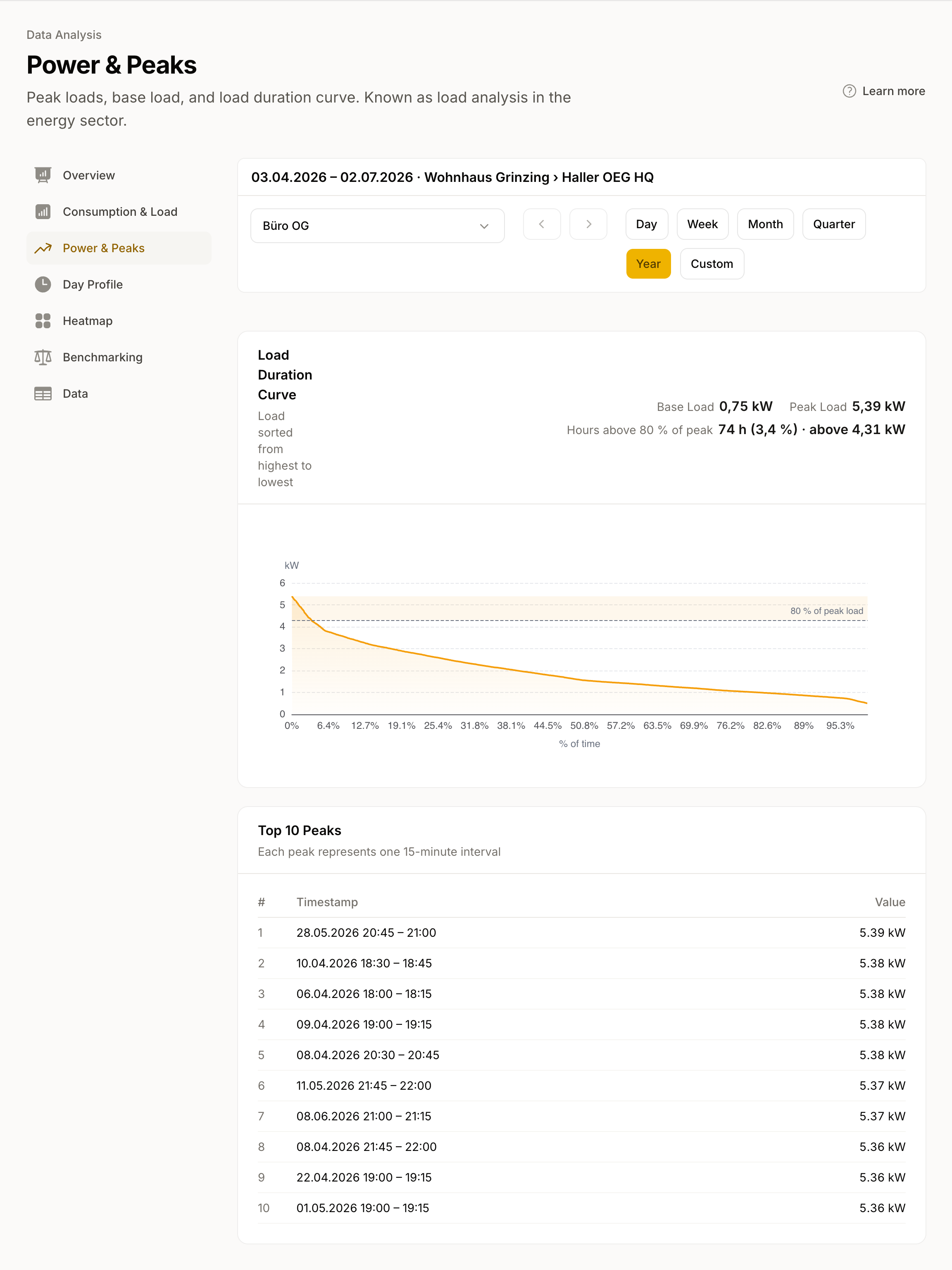

Power with load duration curve and a table of the highest peaks.

See the patterns

The Heatmap shows consumption by weekday and hour, so business hours, night-time consumption and outliers stand out at once. The Day Profile compares weekdays with the weekend.

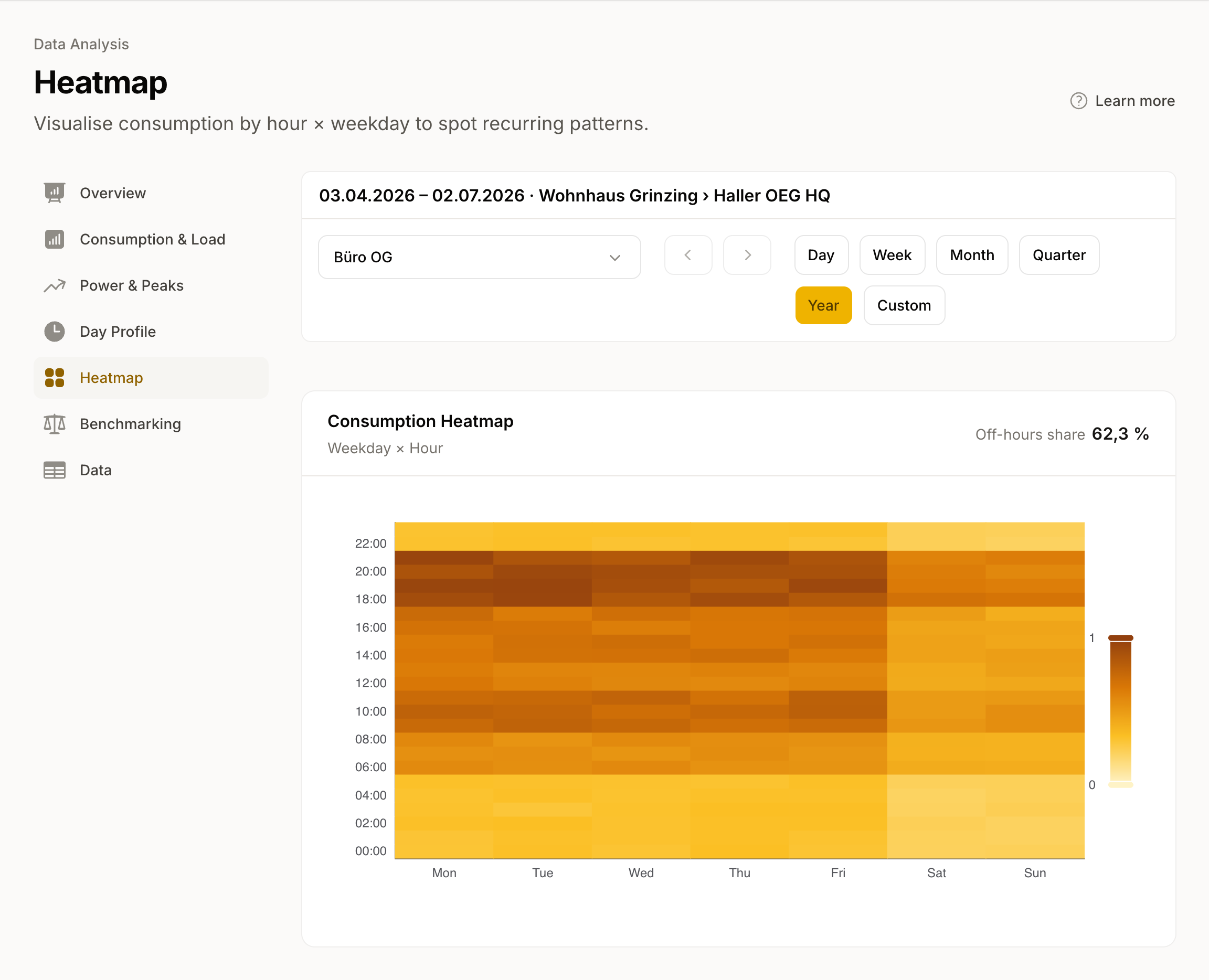

Consumption heatmap by weekday and hour with clearly visible business hours.

Check values and take them with you

Data shows every quarter-hour as a row: timestamp, OBIS code (the standardised code for the measured quantity), value and quality level. The quality distribution sits next to it as a chart, and the CSV export covers exactly the selected period.

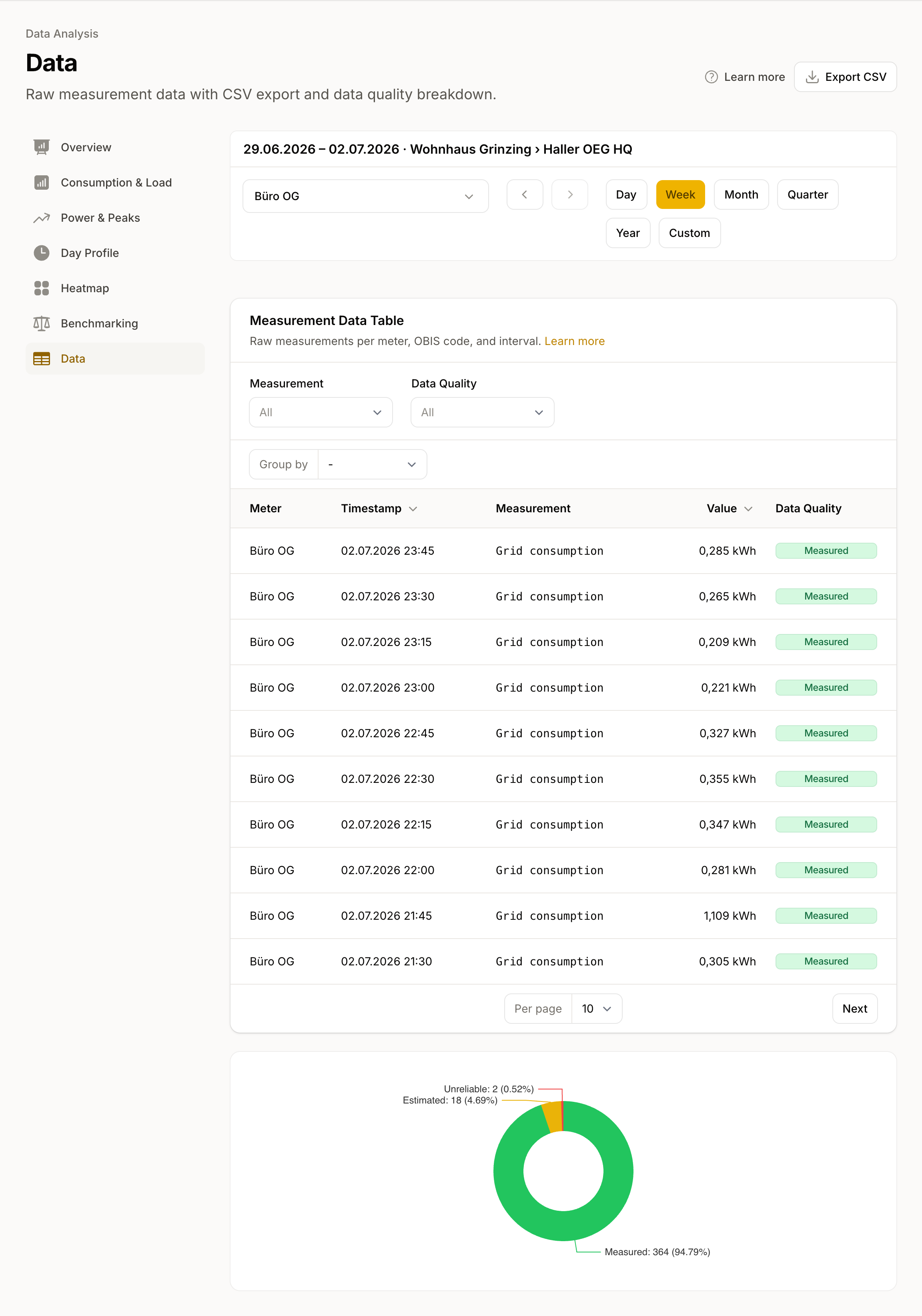

Raw data table with a quality level per value, quality distribution and CSV export.

You run the analysis on the platform itself

All Austrian grid operators via the EDA network

How the connection works →

energiedaten.at

Every day you see the previous day's values in every view. On the Data page, each value is marked as measured or estimated.

Base load & peaks

Load duration curve and top peaks under Power

Patterns

Heatmap and Day Profile

Benchmarking

Consumption per m², compared with the same days last year

Raw data & quality

Every quarter-hour with its quality level

Export

CSV for the selected period

Optional

Your systems

More about integrations →

In every view:

15-minute values Consumption & feed-in Quality level per value Location view

One meter, one site, or the whole portfolio

On the Consumption page you choose the resolution: 15 minutes, hour, day or month. For comparison, you can add the previous period, the same period last year or a period of your choice.

You can ask each of these questions for a whole location or customer as well, and all of its metering points are added together. The Overview shows every connected metering point at a glance. You create locations and customers in Portfolio management.

Feed-in metering points, for example from a PV system, run through the same views. The toggle switches each metering point between consumption and feed-in.

Benchmarking shows a location's electricity consumption per m² of net floor area and how it changed against the same days last year. It ranks several locations by consumption per m² within their building type, so the one that stands out is easy to spot. For this, you record the location's building type and floor area.

You can request values from before the connection; more on that under Smart meter data. If values should reach other systems on a schedule, Integrations handle that.

Reports, before you calculate

Before a settlement or an annual filing, you see how reliable the figures are, and you lay locations side by side. The reports are under Data → Reports:

  • Data completeness shows per metering point which days are missing, which we have re-requested from the grid operator and which it has declined. The report covers electricity and gas and is available on every plan, Community included.
  • Energy balance puts your locations side by side with consumption, feed-in and balance for a period you choose, for electricity and gas. It needs location management.
  • Annual overview lays a calendar year out in twelve monthly totals per location, split into consumption and feed-in. It needs location management, evaluates electricity only and currently carries the "Preview" label.
  • Peak loads names the highest quarter-hour power per metering point and month in kW. You reach the page with location management or Advanced Analysis, and the table belongs to Advanced Analysis. It evaluates electricity only.

Data completeness, Annual overview and Peak loads download as CSV or XLSX. For the readings themselves, choose the Compact layout at export, with one row per point in time, and have totals delivered per hour, day or month. We prepare very large exports in the background and send an e-mail when the file is ready.

Do your energy communities match your consumption pattern?

See how much electricity each of your energy communities contributes to your consumption and how much you still buy from your electricity supplier. The chart shows each community's contribution in 15-minute intervals, even when one metering point takes part in several communities.

If two communities mainly supply electricity at midday, you may still need electricity from your supplier in the morning and evening. Compare their contributions with your consumption: do the communities cover different times, or do their contributions fall within the same hours?

For feed-in, see how much electricity each community takes and how much surplus goes to your electricity buyer.

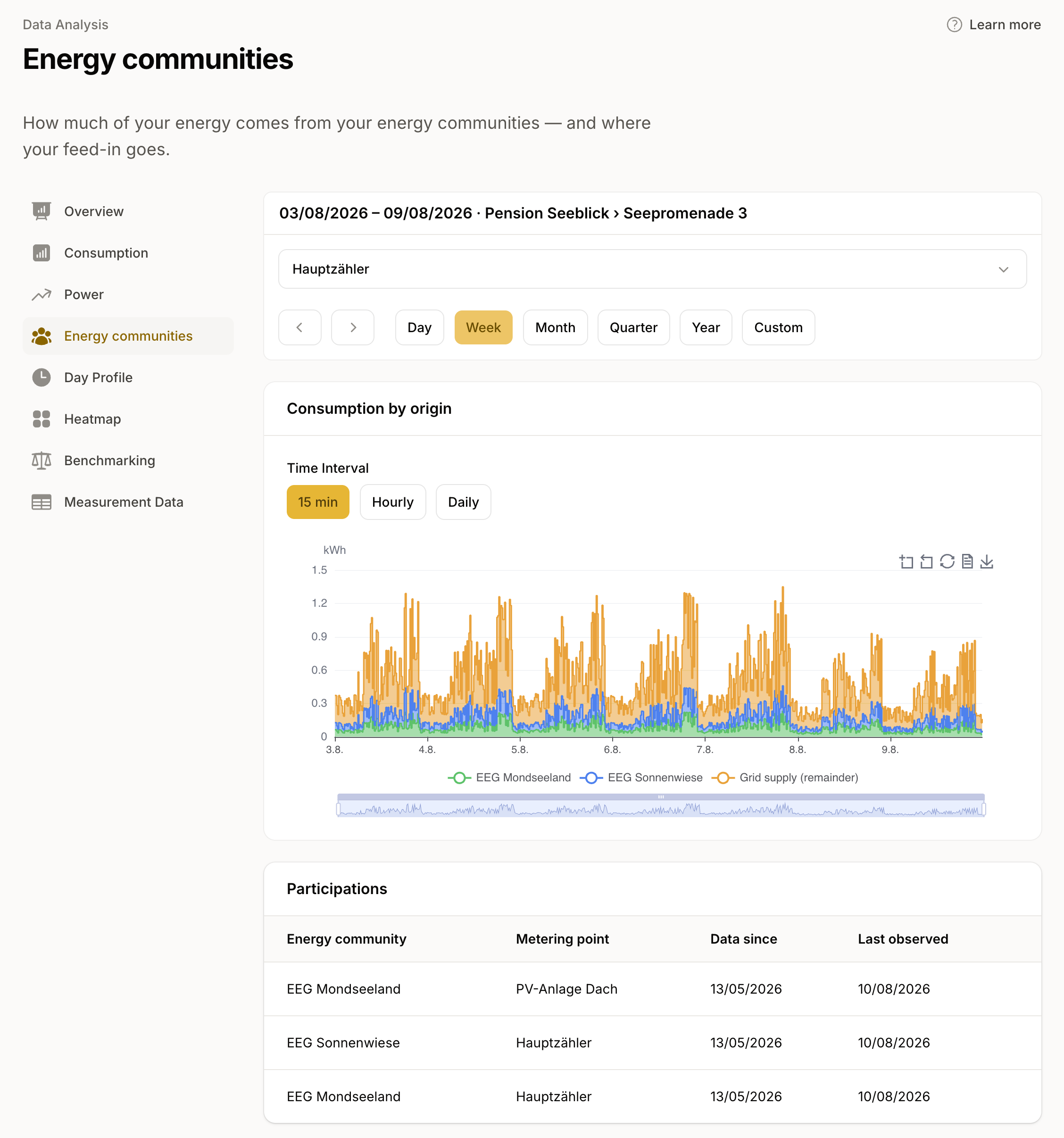

Energy communities page: consumption per quarter-hour separated by energy community, alongside electricity from the supplier.
Two energy communities compared: when they contribute to your consumption and how much electricity still comes from your supplier.

Ask about consumption in your AI assistant

With AI connections (MCP), you can ask your assistant about a site's consumption. Ask for the largest peaks with their timestamps and metering points, so you can check them before a client meeting.

Every value carries its quality level

On the platform you see for every quarter-hour whether the value is measured, a reliable substitute value or a provisional one. A dedicated chart on the Data page shows the distribution over the selected period. Grid operators must replace provisional values with measured or reliable ones within 60 days. An analysis can improve retroactively because of this, and you always see what it is based on.

Frequently asked questions

Does this also work for feed-in, for example a PV system?
Yes. Feed-in metering points flow through the same views, and the toggle switches between consumption and feed-in. The analysis applies per metering point: if a meter has separate metering points for consumption and feed-in, you look at each one individually.
Can I export the data?
Yes, as CSV or XLSX: in the Detailed layout per row timestamp, OBIS code, value, quality level and granularity, for the selected period. If files should reach systems or recipients on a schedule, you set that up through integrations.

Your smart meter data, daily in your systems

Smart meter consumption data via API, webhook, or CSV for all Austrian grid operators.
